WFCO Black 8900 Series 75 Amp Power Center

Original price was: $387.00.Current price is: $99.99.

SKU: ZHLLC 89327 Categories: Electrical, Power Converters

Easy, Fast Returns Guarantee
The home of quality products.
Efficiency meets excellence in customer care.
fast shipping

/

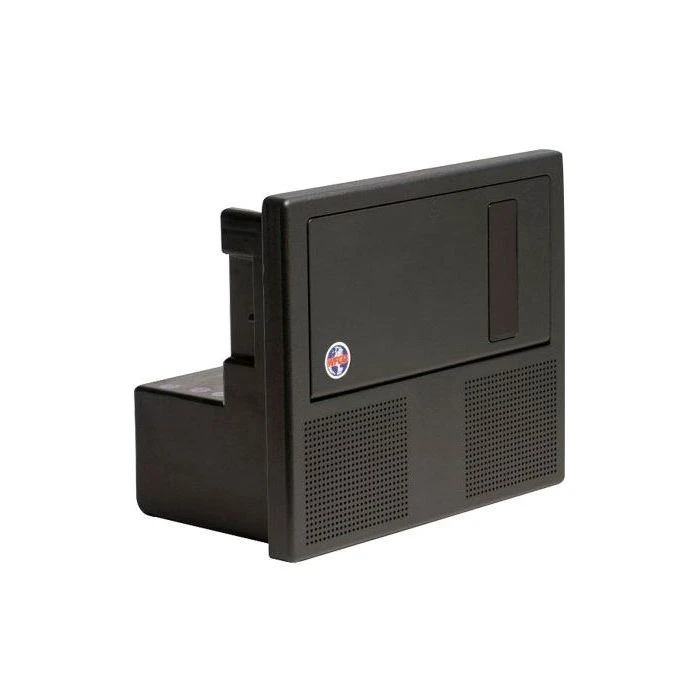

WFCO Black 8900 Series 75 Amp Power Center

The WF-8975 model provides 75 amps and a clean, constant 13.6V DC nominal output, for reliable operation of electronics and appliances. Automatic three-stage charging extends the life of your battery with output voltage modes of 13.2V DC range “float” mode, 13.6V DC range “absorption” mode, and a 14.4V DC range “bulk” charge mode. The 8900 Series also maintains peace and quiet, as the cooling fan runs only when needed. Front-cooled fan installation does not create additional installation space requirements.

FCC Class B compliance for every power center model means that the units are designed not to not cause interference with televisions, radios or other signals. Electronic current limiting automatically shuts down the power during overload or short-circuit conditions, protecting the life of your power center and electrical system.

The 8900 Series models provide AC and DC distribution with innovative features. They can accommodate a 30-amp main AC circuit breaker and up to five branch circuits. Eleven-branch DC circuits are available with LED lights for each DC circuit to illuminate and identify open circuits. Front cover window allows for a quick visual check of the fuse LED lights.

*Power center does NOT include individual fuses or breakers.

Item #	89327
Brand	WFCO
Series	WF-8900
Model	WF-8975AN-PB
Style	Distribution Panel
Input	105-130 Vac, 60 Hz, 1300 W
Output Amperage	75 Amps (Output Power: 1300 W)
Color	Black
Features	Converter Type: Three-Stage Converter Charger Voltage Output: 13.2 – 14.4V DC Range Absorption Mode (Nominal Voltage): 13.6V DC (nominal voltage) Bulk Mode (Quick Charging Voltage): 14.4V DC (quick charging voltage) Float Mode (Trickle Charge Voltage): 13.2V DC (trickle charge voltage) Over Current : Yes Over Temperature: Yes Over Voltage : Yes Reverse Polarity: Yes Cooling System: Yes AC Circuits (twin breakers): 1 main and 5 branch circuits DC Circuits (Quantity): (2 30A max), 11 (9 20A max) Case Material: Plastic Case Color: Black Certifications : FCC All models are UL and cUL-Listed and FCC Class B compliant
Included	*Power center does NOT include individual fuses or breakers.
Dimensions	Outer dimensions: 13.875" W, 11.625" H, 9" D Rough opening:12.25" x 11" x 7.375"
Warranty	2 Year
Net Weight	10
Special Order Item	No
UPC	816227010148
