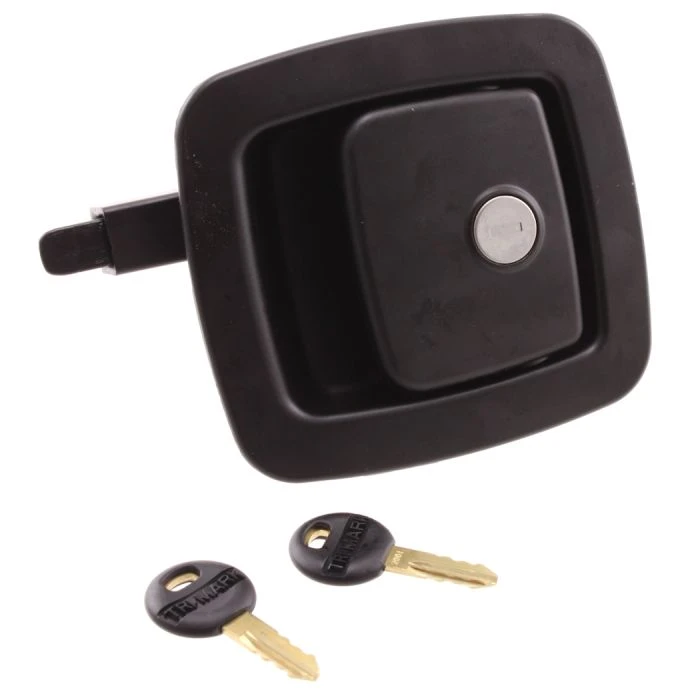

Tri Mark 1 Point Baggage Door Lock

Original price was: $62.61.Current price is: $43.83.

SKU: ZHLLC 65422 Categories: Cam Locks, Hardware, Hatch & Compartments

Easy, Fast Returns Guarantee
The home of quality products.
Efficiency meets excellence in customer care.
fast shipping

/
Tri Mark 1 Point Baggage Door Lock

Single-point locking = the door locks only at the point where the key is turned, half-way up the edge of the door.

Mounts with four (4) #8-32 thread forming fasteners (not supplied). Supplied with gasket already applied under recess in housing flange for simple, clean installation.

Finish:
Paddle and housing: low gloss black powder coat.
Steel components: zinc coat with clear chromate.

Material:
Housing and paddle: die cast zinc.
Pivot plate, axles, pivot arm: steel.
Plunger bolt: plastic

Item #	65422
Brand	Tri-Mark
Model	2131711
Color	Black
Features	Offers lower operating efforts and a more forgiving assembly. Ample finger clearance. Paddle can be locked before the door is shut (slam action). Updated styling. Improved plunger design. Increased mechanical advantage to allow for lower operating efforts.
Included	(2) Keys Gasket already applied under recess in housing flange
Dimensions	Face Plate: 5-1/4" W x 4-3/4" H Screw Holes Spaced: 2-13/16" W and 2-11/16" H
Net Weight	1.65
Special Order Item	No
LTL Freight	No
