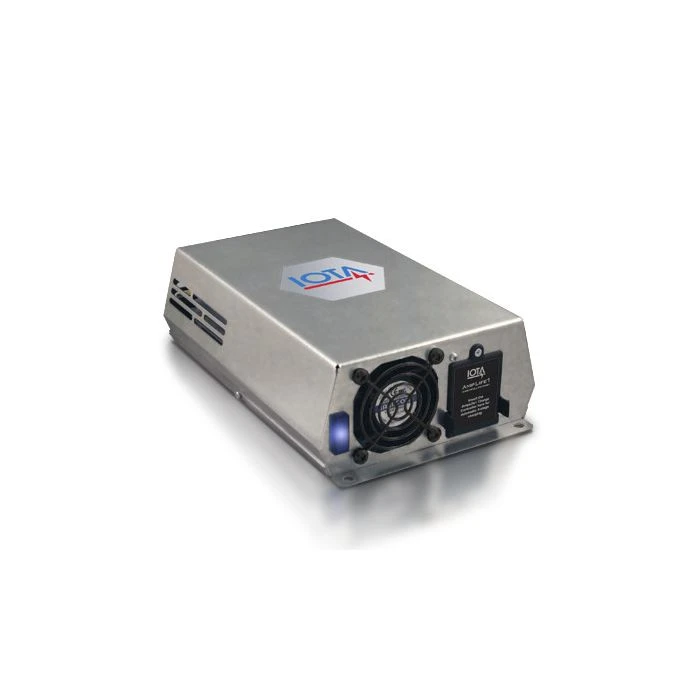

IOTA Engineering 45AMP Converter Charger

Original price was: $183.83.Current price is: $96.99.

SKU: ZHLLC 91284 Categories: Electrical, Power Converters

Easy, Fast Returns Guarantee
The home of quality products.
Efficiency meets excellence in customer care.
fast shipping

/
IOTA Engineering 45AMP Converter Charger

As a power supply, the unit’s tightly controlled regulation allows the user to operate a nominal 12VDC load up to 45 amps.

As a battery charger, the unit will maintain the battery, delivering its full-rated current when the battery capacity falls sufficiently low. The voltage is set to deliver its maximum current for the necessary period of time to minimize undue stress to the battery caused by heating of its cells. This helps to ensure the longest possible life of the battery. Over time, as the battery nears its full capacity, the SDC-120-12-45 will automatically drop the current, providing a float-charge to the battery to prevent self-discharge of the cells.

Item #	91284
Brand	IOTA
Model	DLS-45
Features	UL and CUL 458 Listed Clean, steady DC output operates your loads the way they were intended, avoiding potential damage to systems from errant DC voltage. Built-in protection features guard the unit against erratic line voltage that can occur from shore power or generator supplies 2-Gauge max. connection capagility decreases voltage drop for better battery charging and increased installation distance. Reverse Polarity Protection with simplified fuse removal protects the unit against damage from incorrect battery hook-up. Proportional fan control starts and stops slowly and operates at speeds directly proportional to unit temperature for whisper-quiet operation.
Included	DC Output Voltage** 13.4-14.8 VDC Output Voltage Tolerance (No Load) + or – 0.7% Output Amperage, Max Continuous 45 Amps Maximum Power Output, Continuous 650 Watts Ripple and Noise <50 mV rms Input Voltage Range 108-132 VAC Input Voltage Frequency 47-63 Maximum AC Current @ 108VAC 11 Amps Typical Efficiency >80% Max Inrush Current, Single Cycle 30 Amps Short Circuit Protection Yes Overload Protection >100% Line Regulation 100 mV rms Load Regulation <1% Fan Control Proportional Thermal Protection YES Working Temperature Range 0°- 40°C Storage Temperature -20° to 80°C Withstand Voltage (VDC)* 1700/1700/500 Dimensions 10.3" x 6" x 2.7" Weight 5 lbs
Warranty	3
Net Weight	5
Special Order Item	No
UPC	040232430046
