IOTA 45Amp Coverter-Charger With IQ4 Smart Controller

Original price was: $222.41.Current price is: $96.99.

SKU: ZHLLC 91288 Categories: Electrical, Power Converters

Easy, Fast Returns Guarantee
The home of quality products.
Efficiency meets excellence in customer care.
fast shipping

/

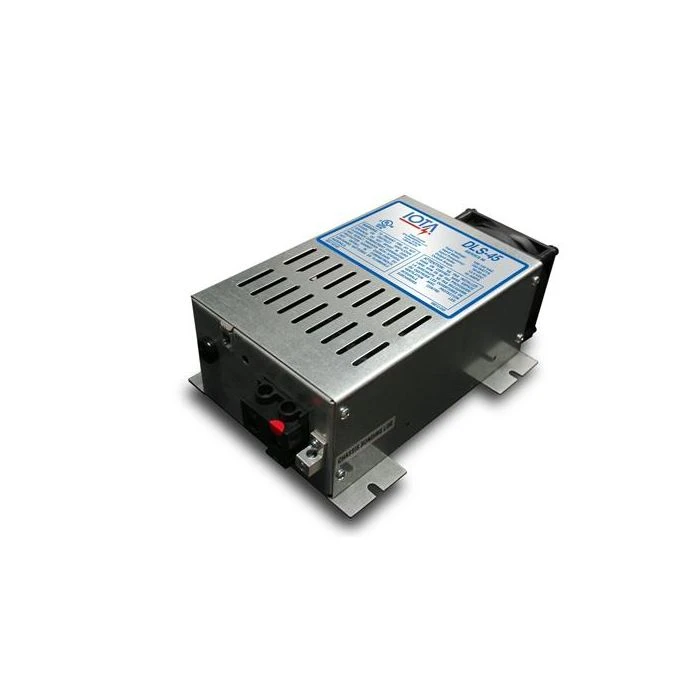

IOTA 45Amp Coverter-Charger with IQ4 Smart Controller

The DLS-45 Power Converter/Battery Charger from IOTA Engineering converts nominal 108-132 AC voltage to 13.4 DC voltage for both DC load operation and 12V battery charging.

As a power supply, the unit’s tightly controlled regulation allows the user to operate a nominal 12VDC load up to 45 amps.

As a battery charger, the unit will maintain the battery, delivering its full-rated current when the battery capacity falls sufficiently low. The voltage is set to deliver its maximum current for the necessary period of time to minimize undue stress to the battery caused by heating of its cells. This helps to ensure the longest possible life of the battery. Over time, as the battery nears its full capacity, the DLS-45 will automatically drop the current, providing a float-charge to the battery to prevent self-discharge of the cells.

Item #	91288
Brand	IOTA
Model	DLS-45/IQ4
Features	Switch-mode technology Exceptionally clean DC output Tight line-load regulation Quickly and efficiently charges batteries Designed to withstand low transient AC line voltage Current limit and thermal/overload protection Lower operating temperature Quiet fan operation External reverse polarity fuse protection from incorrect battery connection High and normal-stage charging jack
Included	The IQ4 Smart Controller provides intelligent automatic charging control for your DLS Battery Charger, keeping batteries fully charged and operating for long life. IQ4 Charge Controllers are available for any DLS Battery Charger model and are backed by IOTA's Two-Year Warranty. For 4-Stage Charging, use either the external IQ4 pendant or a DLS charger with built-in IQ4 control. The IQ4 Charge Controller allows the DLS Series battery charger to operate as an automatic 4-Stage "Smart Charger," delivering the charge your battery needs at the time it needs it. The IQ4 uses four different charging modes to keep your battery in peak condition… DC Output Voltage (No Load) approx. 13.6V (DC) Output Voltage Tolerance (No Load) + or – .7% Output Amperage, Max Continuous 45 Amps Output Voltage (Full Load) approx. >13.4V (DC) Maximum Power Output, Continuous 600 Watts Ripple and Noise <50 mV rms Input Voltage Range 108-132V (AC) Input Voltage Frequency 47-63 Maximum AC Current @ 108VAC 11 Amps Typical Efficiency >80% Max Inrush Current, Single Cycle 30 Amps Short Circuit Protection Yes Overload Protection >100% Line Regulation 100 mV rms Load Regulation <1.5% Fan Control Proportional Thermal Protection YES Working Temperature Range 0°- 40°C Storage Temperature -20° to 80°C Withstand Voltage (VDC)* 1700/1700/500 Dimensions 9.7" x 6.7" x 3.4" Weight 5.0 lbs
Warranty	2
Net Weight	6
Special Order Item	No
UPC	040232430053
