Intellitec Fresh Water Pump Control Module

Original price was: $49.71.Current price is: $34.80.

SKU: ZHLLC 91776 Categories: 12 Volt Power, Electrical

Easy, Fast Returns Guarantee
The home of quality products.
Efficiency meets excellence in customer care.
fast shipping

/

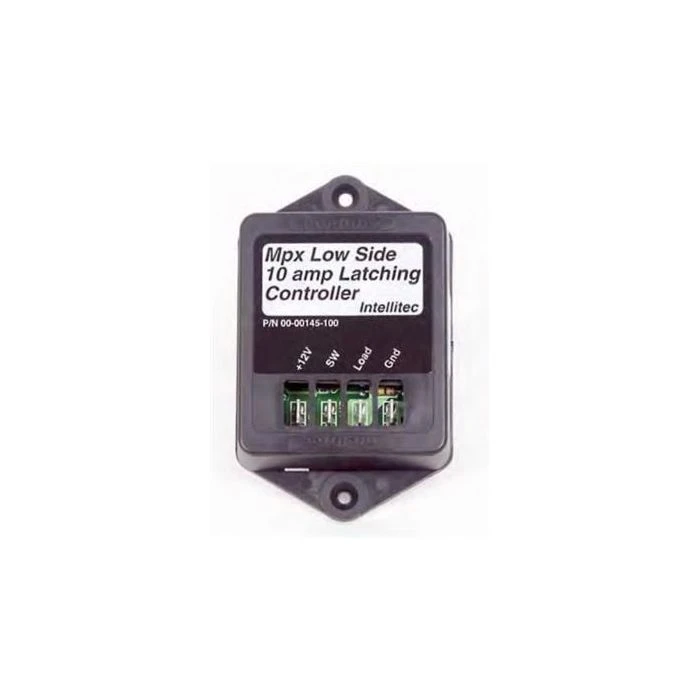

Intellitec Fresh Water Pump Control Module

Monoplex water pump controller is designed to operate as a ” low side ” remote switch in 12 Volt DC systems. Whilst the water pump controller was designed to control the domestic water pump in an RV or boat application, its use however is not limited to this, it could also be used to control a wide variety of loads such as lighting, other pumps, fans etc. when it is convenient to switch on the ground side. The Monoplex water pump control is packaged in a plastic enclosure for mounting near the water pump using two flat head screws. The water pump controller is capable of operating multiple switch points and up to two LED power indicators may be used all on the single wire. Power to the water pump controller can be supplied from either the battery or the converter

Item #	91776
Brand	Intellitec
Model	00-00145-100
Features	Designed To Operate As A "Low Side" Remote Switch In 12 Volt DC Systems Minimizes The Use Of Heavy Gauge Wire That Runs Throughout The Coach Signaling From Multiple Points Along The Single Wire MONOPLEX Can Be Easily Accomplished With Inexpensive Switches, Providing Momentary Contact To Ground Simplified Switches (Momentary Buttons) Increase Reliability Negligible Standby Current Makes This System Superior To Conventional Multipoint Relay Switching Labor And Initial Installation Costs Are Reduced Compared To Multipoint Switching Using Conventional Switching
Included	Ampere Rating: 10 Amps Color: Black Compatibility: Control The Domestic Water Pump/ Lighting/ Fans Voltage Rating: 10 To 16 Volts
Warranty	90 days
Net Weight	1
Special Order Item	No
