Garnet SeeLevel II 709-A Monitoring System

Original price was: $359.98.Current price is: $97.99.

SKU: ZHLLC 83928 Categories: Batteries & Battery Supplies, Batteries Boxes & Accessories, Electrical

Easy, Fast Returns Guarantee
The home of quality products.
Efficiency meets excellence in customer care.
fast shipping

/

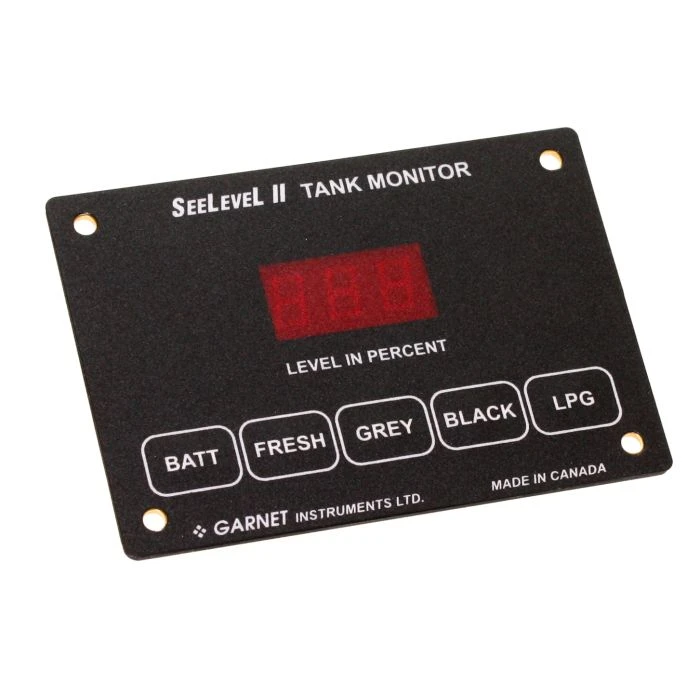

Garnet SeeLevel II 709-A Monitoring System

This 709A system provides an outstanding balance between low cost and full features. Instead of single points that give you only a close approximation of how full your tanks are this system offers a continuous level and shows an actual number, in percent of full.

Item #	83928
Brand	Garnet Technologies Inc
Model	709-A
Features	Provides alarms for fresh, grey and black tanks Provides accurate tank level information using percentage of full readout Measures tanks up to 12 inches tall with a single sender or 24 inches tall with dual senders Tanks are monitored using Garnet's proprietary external level sensing technology Tank senders connect to display via a one wire bus which saves wiring costs LPG tank connection compatible with existing electric senders Calibrate LPG at first fill of tank or it can be factory calibrated. Display shows increasing level as resistance increases. Display requires 12 volts from the RV battery, the system will function from 11 volts to 16 volts. Current drain is less than 200mA.
Included	(3) Sender Strips 1 Display Readout Mounting Screws Wiring Harness Instructions and Programing Guide Warranty Registration
Dimensions	Black panel: Approximately 4" wide by 2.8" high by 1" deep Sender strips: 12" x 2"
Warranty	1 Year
Special Order Item	No
LTL Freight	No
