Dinosaur FAN50PLUS Fan 50 Plus Ignitor Board

Original price was: $139.98.Current price is: $99.99.

SKU: ZHLLC 51464 Categories: Circuit Boards, RV Appliances

Easy, Fast Returns Guarantee
The home of quality products.
Efficiency meets excellence in customer care.
fast shipping

/

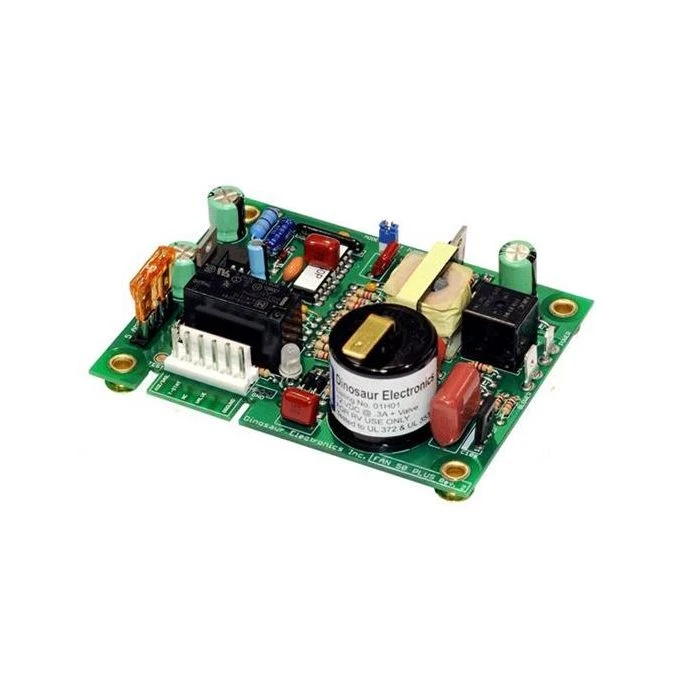

Dinosaur FAN50PLUS Fan 50 Plus Ignitor Board

With this board installed in your furnace, the fan will no longer run all night blowing cold air. Board knows when the propane has run out or if the furnace did not light, and shuts the fan off one minute after the third try. It has the same great design features as the other Universal Ignitor Boards, but with an added fan control relay.

The basic purpose of a Fan Control Ignitor Board is to shut the fan motor off if the board fails to sense a flame after
the third ignition try. Thus, battery drain is reduced and the needless blowing of cold air is eliminated.

The FAN 50 Plus Pins , after shutting the fan motor off, will wait for 1 hour and repeat the whole sequence again before
permanent shut down.

Item #	51464
Brand	Dinosaur Electronics
Model	FAN50PLUSPINS
Fits	Furnaces with Suburban's and Hydro Flame's fan control feature, and can also be used to implement the fan control feature in most 12V DC DSI furnaces. *Not recommended for use in the Duo-Therm 900 series furnaces where the thermostat is in the ground circuit.
Features	Jumper selectable operation 12 VDC operation Works in 12 VDC furnaces* (See Fits) Microcontrolled Diagnostic LED
Dimensions	3.35" x 4.25"
Warranty	3 Year
Special Order Item	No
UPC	816689021058
LTL Freight	No
