Blue Sea Systems 6 Circuit ST-Blade Fuse Block

Original price was: $53.37.Current price is: $37.36.

SKU: ZHLLC 84336 Categories: Electrical, Fuse Blocks

Easy, Fast Returns Guarantee
The home of quality products.
Efficiency meets excellence in customer care.
fast shipping

/

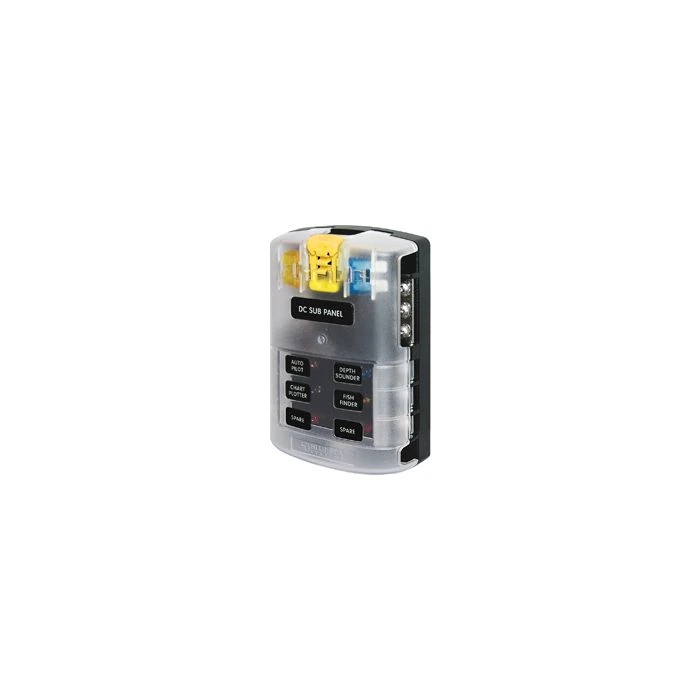

Blue Sea Systems 6 Circuit ST-Blade Fuse Block

Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses.

The ST Blade Fuse Block can offer a space saving and cost effective solution to adding circuit protection when there are limited available circuit breakers on the distribution panel. A single circuit breaker on a distribution panel can provide the circuit protection for the feed wire to the ST Blade Fuse Block. This is frequently done for electronics that each have their own ON-OFF switch and don’t require the switching offered by a circuit breaker.

Circuits: 6
Maximum Amperage: 100A per block & 30A per circuit
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4)
Negative Bus: #10-32 Stud
Screw Terminal Type: #8-32 Screws with captive star lock washer

Item #	84336
Brand	Blue Sea Systems
Model	5025-BSS
Replaces	5025
Input	For 12V or 24V DC systems
Features	Positive distribution bus with #10-32 stud Can be used for 24-hour circuits Fuse blocks with covers include 20 write-on circuit labels Tin-plated copper buses and fuse clips Accepts ring or spade type terminals Accepts ATO® and ATC® fast acting blade fuses Fuses sold separately
Dimensions	See Image # 2
Special Order Item	No
UPC	632085050252
